Batchbox Doors

1-5 2024

Due to my injury, I have not been able to manufacture doors since the spring of 2023

I have written and published a book with detailed instructions, photos, and material lists

Build your own Dragontech door with window or take the plans to a local metal fabrication shop and save on shipping.

The book is ready to ship now, the cost in the lower 48 states is $35 with free shipping

For those in other parts of the world, the cost is $30 with shipping added.

Contact me at dragontech@blackfoot.net to order

COMING SOON

Basic Batchbox construction

Basic backyard J-Tube construction

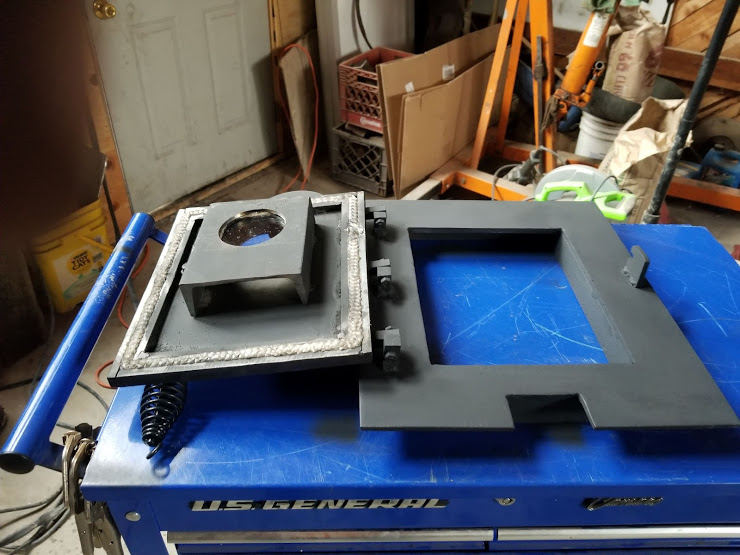

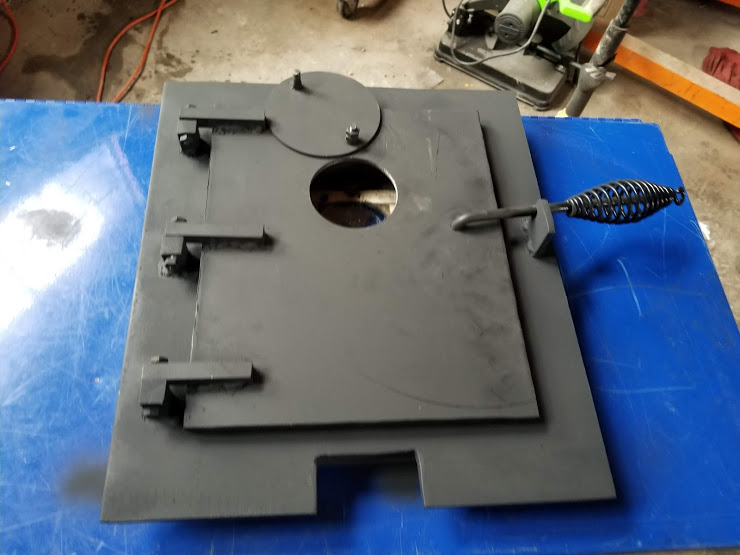

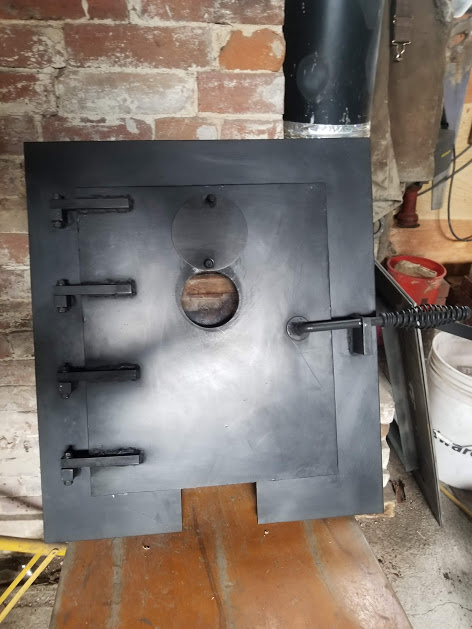

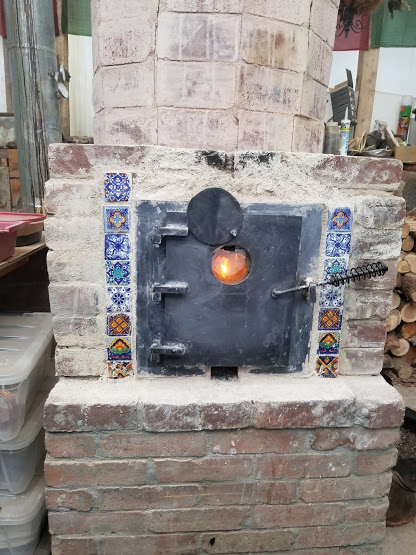

Handmade batchbox door & frame.

All steel construction sized to easily fit published batchbox dimensions.

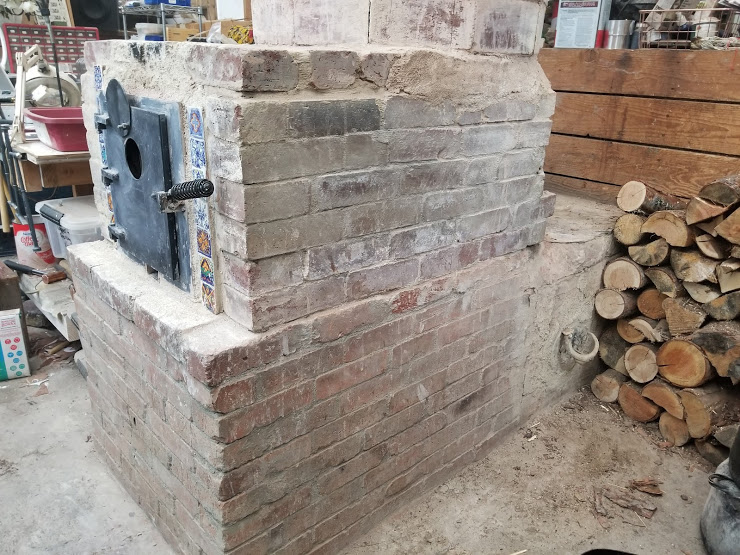

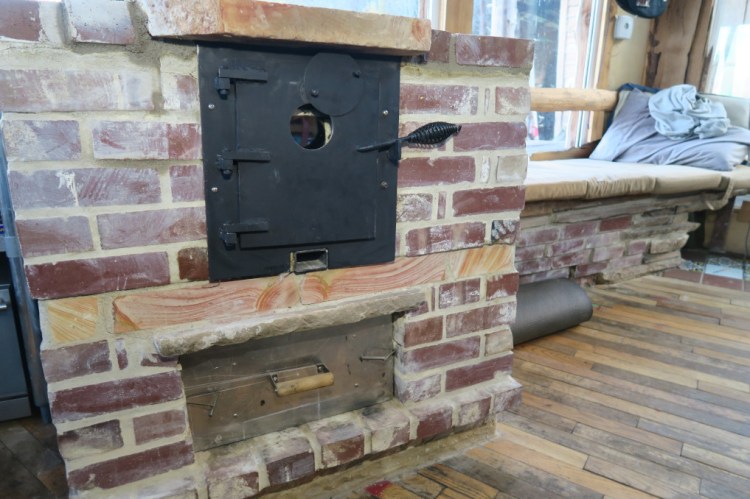

When building stoves with plans from Walker stoves.

Variation’s in materials on site make for nonstandard firebox openings.

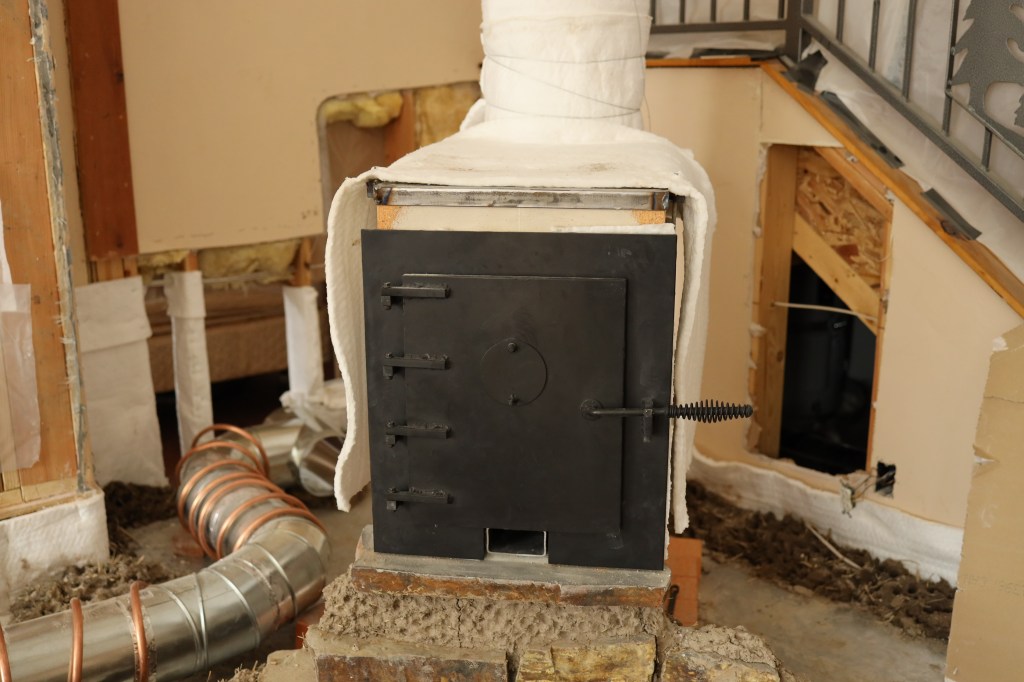

These doors can also be built to the specific size opening of your Walker stove.

Standard published batchbox sizes

6″; 8 5/8″ x 12 15/16″

7″; 10 1/16 x 15 1/8″

8″; 11 1/2″ x 17 1/4″

Larger sizes available by request.

Or ask for a door blank by your riser diameter and supply me with your firebox opening size when you reach that point in your custom build.

The primary air intake has a spark proof inner channel.

Fresh air is supplied to the bottom of the firebox for a complete combustion.

No sparks can get back out on your floor.

4″ draft control to shut off primary air during coal out allowing secondary air to efficiently finish the burn .

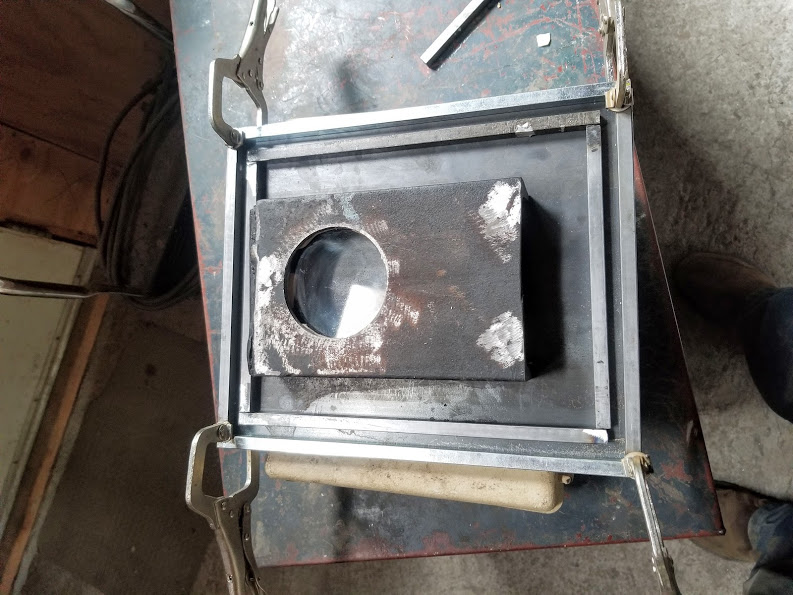

3″ robax viewing window.

Burn free handle.

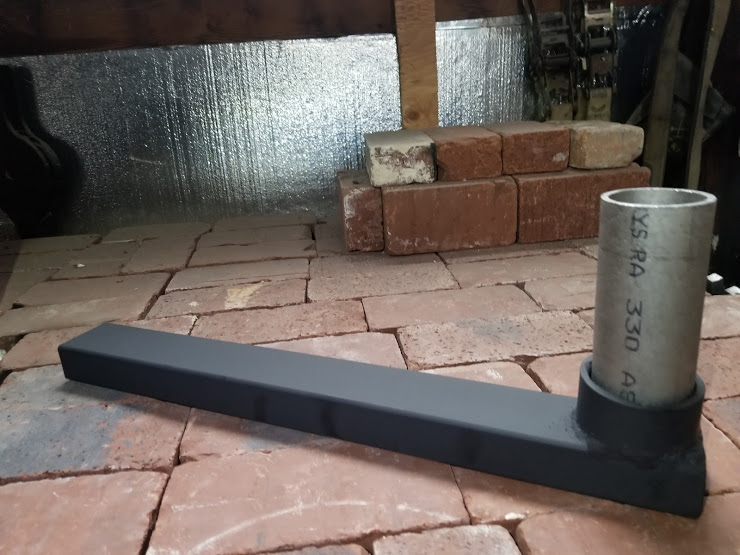

Uses separate secondary air floor channel (sold separately)

At this time there is no heavy door construction

In the future, I hope to manufacture for local pickup.

To learn more about BatchBoxes check out this thread at Permies!
